ماژول گیرنده استریو موج رادیویی FM

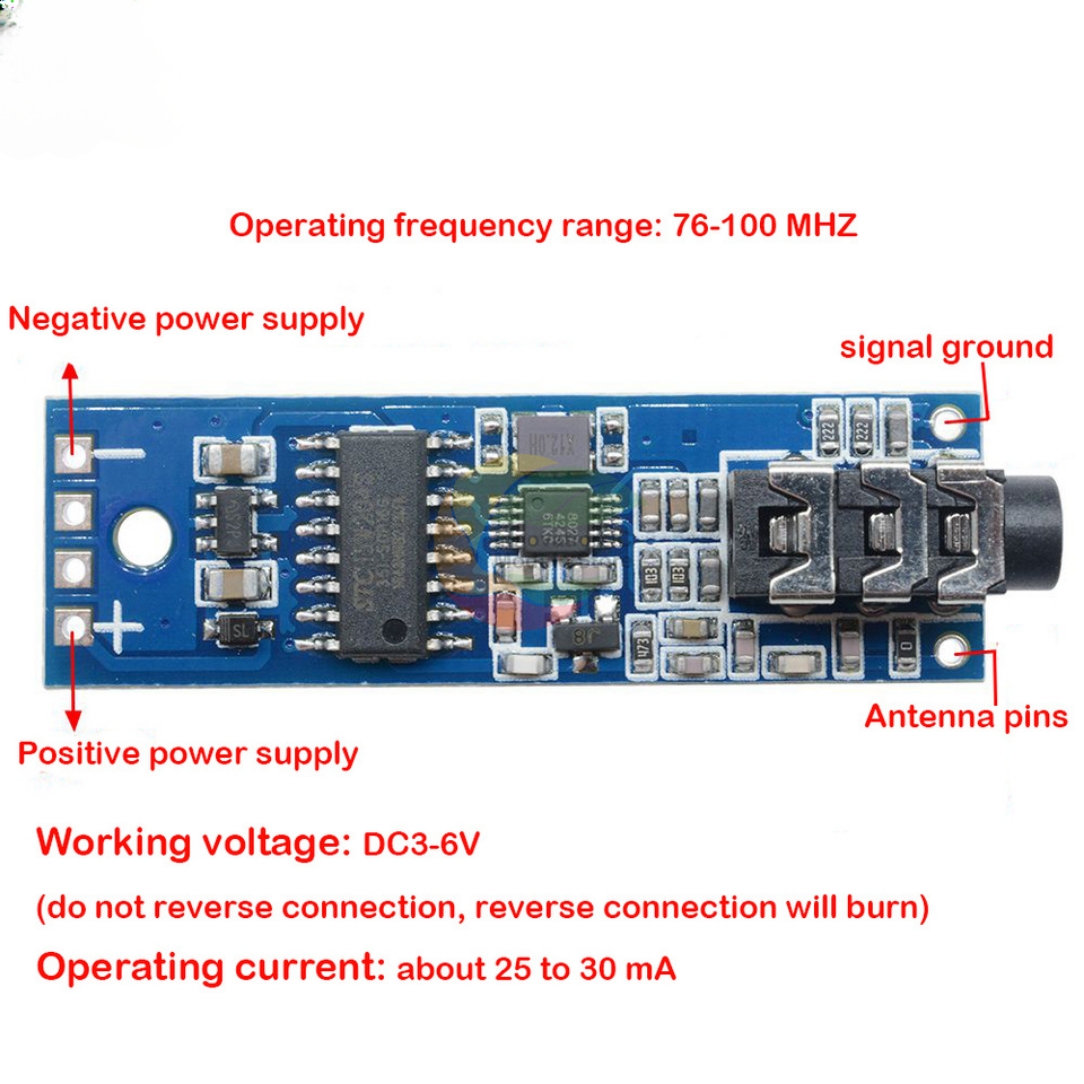

معرفی ماژول گیرنده موج رادیویی FM

Working voltage:DC 3V-6V
Operating Current: 25MA around
Audio output: Max 20mW (0-15 grade cycle regulation)
Reference distance :3.6V voltage 75cm antenna wire is straighted, ordinary mobile radio reception, outdoor open space Test distance of 100 meters
Working frquent:76-108 MHz
Frequency adjustment:buttons
It is voltage chip,the voltage is wide and stability
Battery module width just for 5 diameter, convenient loading of the battery box full launch system

Module can directly drive the headphones to the module is powered on the formation of a high-quality FM stereo radio
Module supports output volume settings
Module operation is simple and convenient, supports semi-automatic station search
Power off memory function,can be stored adjusting the frequency and volume before power off

Application:
FM stereo radio, fixed-frequency receiver, wireless audio transmission
