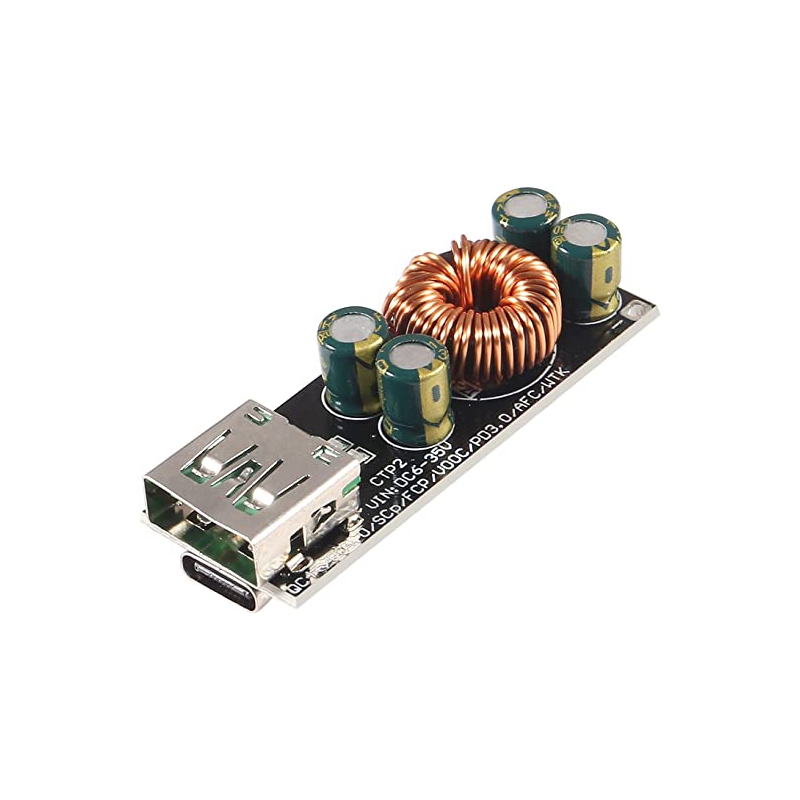

ماژول فست شارژ QC4.0-QC3.0 با خروجی USB Type-C

ماژول شارژ QC4.0-QC3.0 با ولتاژ ورودی 6 الی 35 ولت و خروجی پیش فرض 5 ولت که در پنل های خورشیدی برای شارژ تلفن همراه، سیستم شارژ خودرو ،منبع تعذیه سیستم صوتی خودرو و منبع تغذیه خانگی استفاده می گردد.

Introduction

QC4.0-QC3.0 fast charging module with input voltage of 6 to 35 volts and default output of 5 volts (automatically at 3-12 volts) which are used in solar panels for mobile phone charging, car charging system, power supply system Car audio and home power supply are used.

Specification

• QC4.0 QC3.0 USB Type-C Mobile Phone Quick Charge Adapter 6 -35V Step Down Buck Boost Module for
• Huawei SCP/FCP Apple PD Qualcomm
• Supports all major fast charge protocols: USB PD 3.0 (PPS) QC4+ QC4.0 QC3.0 QC2.0 for Apple 2.4A for
• Samsung AFC for Huawei SCP/FCP for MTK PE2.0
• Blue LED Power Indicator Red LED Fast Charge Indicator

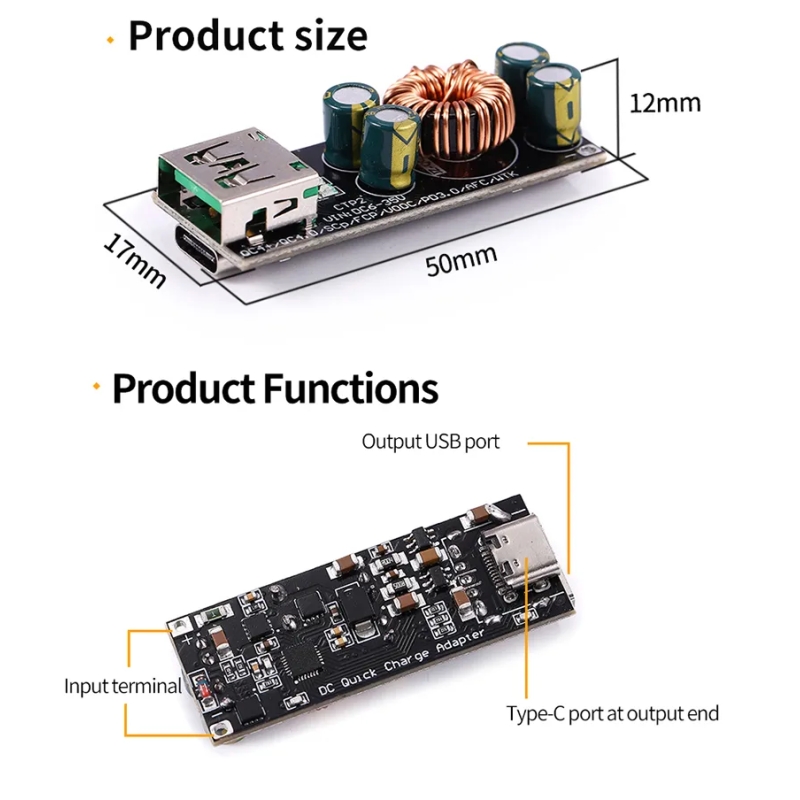

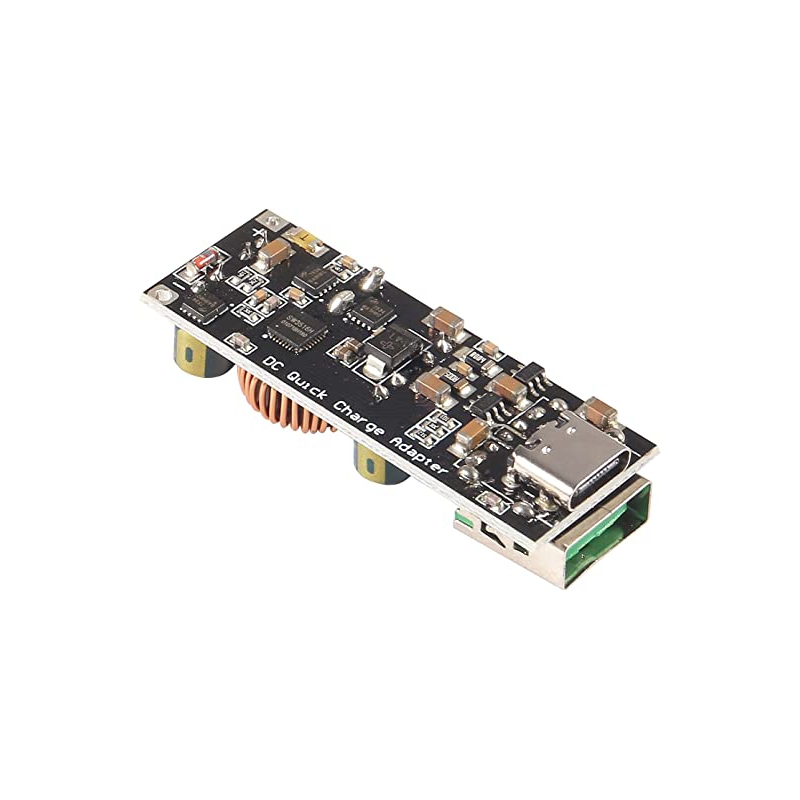

• Input must be 1V higher than the output Size: 50x17x12mm SW3516 IC

SW3516 Fast charge protocol compatibility:
USB PD30 (PS) support
Qualcomm QC4.0/QC3.0 support
Huawei SCP/FCP support
Apple 2.4 A support
Samsung AFC support
VIVO9V2A twin engine support
Mediatek PE20 support

SW3518 Fast charge protocol compatibility:
USB PD30 (PS) support
Qualcomm QC4.0/QC3.0 support
Huawei SCP/FCP support
Apple 2.4 A support
Samsung AFC support
VIVO9V2A twin engine support
Mediatek PE20 support
VOOC support

Notes:

1. For quick charging with low voltage and large current, please use the original data cable. If you want to measure the charging voltage and current, please use the USB meter with low internal resistance!Otherwise affect charging current!
2. TYPE O port is used for output charging;Use c-to-c /TYPE_C dual-head data cable TO charge mobile phone or laptop!
3, QC4+/QC4.0/PD3.0 and other protocols use YPE O port!
4. When the power supply voltage is higher than 21 volts, the maximum support of port C PD protocol is 20V3A output. The module volume is small.
5. When USB port and TYPE_C port are plugged in at the same time, both ports are 5V output!
